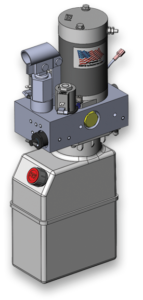

DC 3000 Series Wheel Chair Lift #1

DC 3000 Series Wheel Chair Lift #1

POWER UP GRAVITY DOWN with EMERGENCY HAND PUMP

Description

For applications with single acting cylinders that extend the cylinders by power and retract the cylinder by gravity. Back up emergency hand pump when battery power is not available.

Specifications

Motor
12V OR 24V DC
Pressure
500 – 2500 PSI (35 BAR – 175 BAR) TYPICAL PRESSURE FOR 12VDC 1750 PSI (120 BAR)
Pump
0.5 GPM TO 1.2 GPM (1.9 LPM – 4.5 LPM) Based on Specification
Reservoir
Plastic 1.5 QT (1.4 LTR)
Control
2 Button Remote

Technical Application

  • Van or Bus Wheel Chair Lifts
  • Home Wheel Chair Lifts
Circuit
