Manifolds

We supply manifolds for AC and DC motors for a wide array of applications.

Manifolds

For more information on our manifolds, please contact one of our specialists by phone at (949) 752-8818 or by email at sales@ktihydraulicsinc.com.

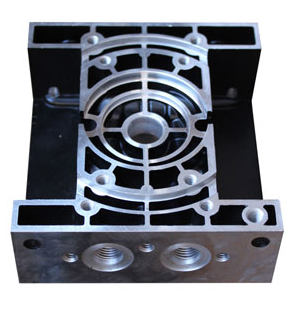

Universal Manifold 1 – (39201005B)

The UM I is a die cast aluminum manifold designed with hydraulic circuit superiorority and flexibility in mind.  By itself, it can create 10 different hydraulic circuits.  When ancillary manifolds are bolted to it’s manifold mounting surface the possible circuits are endless.



The UM I has motor flexibility as well.  It supports bot DC and AC motors.  DC motors, can be 3″, 4.5″, or 5″ in any voltage.  AC motors can be any voltage provided they have either a 5C face mount or a 4F17 face mont.  Standard reservoir mounting supports an endless variety of various capacity reservoirs.  Pump displacements also can be varied based on required circuit demands.

Universal Manifold 2 – (3920-108)

The UM II is a die cast aluminum manifold specifically designed for use in DC applications requiring control of a cylinder or motor.   A wide variety of hydraulic circuits can be configured with the UM II.  Following the UM I design philosophy the UM II can also support a wide variety of hydraulic pumps and reservoirs.  Motors are limited to DC  3″ or 4.5″.

Universal Manifold 3 – (3920-4444)

The UM III is a die cast aluminum manifold designed specifically for those applications requiring control of two separate functions.



The UM III offers increased flexibility to circuit by allowing the combination of any two UM II circuits into 1 manifold, thus providing space saving design.  The UM III offers the same motor, pump and reservoir flexibility as the UM II.

For more information KTI manifolds, please contact one of our specialists by phone, (949) 752-8818 or by email at sales@ktihydraulicsinc.com.
