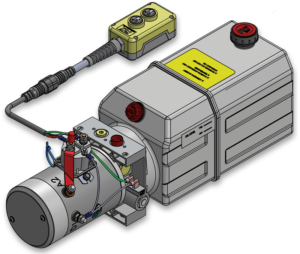

DC 4000 Series Single Acting

HYDRAULIC POWER UNITS

DC 4000 Series Single Acting

POWER UP, GRAVITY DOWN

Description

For applications with a single acting cylinder that extends the cylinder by power and retracts the cylinder by gravity.

Specifications

Motor
12V or 24V DC
Pressure
500 – 4000 PSI (35 BAR – 275 BAR), Typical pressure for 12V DC = 3200 PSI (220 BAR)
Pump
0.5 GPM(1.875 LPM) to 5 GPM(18.75 LPM) based on specification
Reservoir
Steel or Plastic, 1.5 QT (1.42 LTR) to 5 Gallon (18.93 LTR)
Control
2 button remote pendant, wireless remote

Technical Application

  • Tipper/Dump Trailer
  • Leveling System
  • Hydraulic Jack
  • Dump Body
  • Lift Table

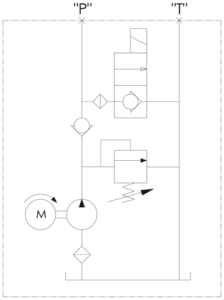

Single Acting
Circuit
