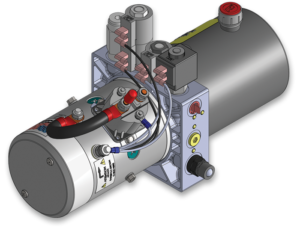

DC 4000 Series Single Blade Snow Plow

HYDRAULIC POWER UNITS

DC 4000 Series Single Blade Snow Plow

Description

For Snow Plows with Power Angling, Cross-Over Relief Valve, Power Up with Float Function.

Specifications

Motor
12V or 24V DC
Pressure
500 – 4000 PSI (35 BAR – 275 BAR), Typical pressure for 12V DC = 3200 PSI (220 BAR)
Pump
0.5 GPM(1.875 LPM) to 5 GPM(18.75 LPM) based on specification
Reservoir
Steel or Plastic, 1.5 QT (1.42 LTR) to 5 Gallon (18.93 LTR)
Control
Furnished by Customer or KTI

Technical Application

  • Truck Mounted Snow Plow
Snow Plow
Circuit
For more information on our hydraulic power units, please contact one of our specialists by phone, (949) 752-8818 or by email at sales@ktihydraulicsinc.com.
