Battery Voltage: 12V DC
Pressure: 500 – 3800 PSI (35 – 262 BAR)
Pump: 0.63 – 3.20 cm³ / rev (0.0384 – 0.1953 in³ / rev)
Reservoir: 5 Quarts Usable Volume
Control: Push-button remote pendant & wireless remote available
Dimensions: 15.5″ L x 9.5″ W x 8.0″ H ( 394mm x 241mm x 203mm)
Max Operating Temperature: Approx. 212 F (100 Degrees C)
Storage Temperature: Ambient Temperature
Life Cycle Test: 10,000 cycles of extending / retracting cylinder (O 3″ Bore x O 1″ Rod x 20″ Stroke) under load of 800 PSI and no visible damage or leak inside motor
Fluid Compatibility: ISO 32 & ATF

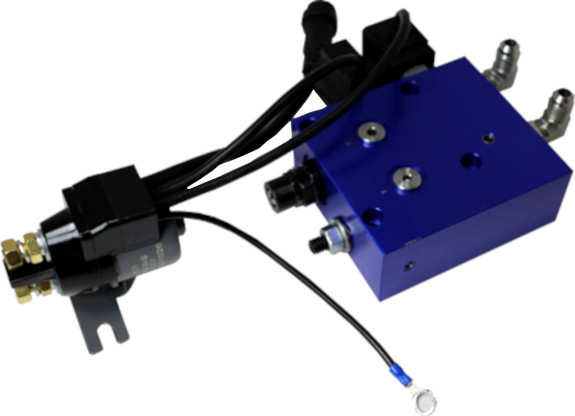

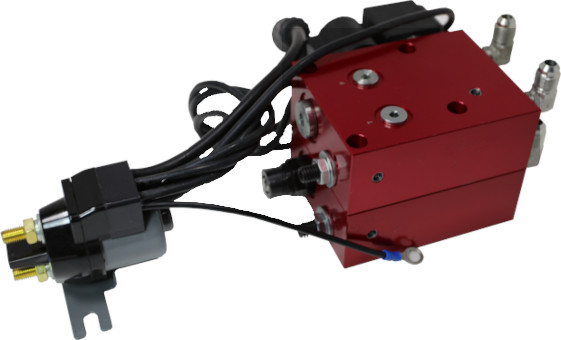

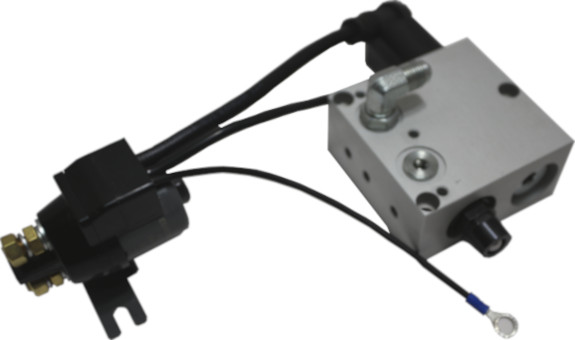

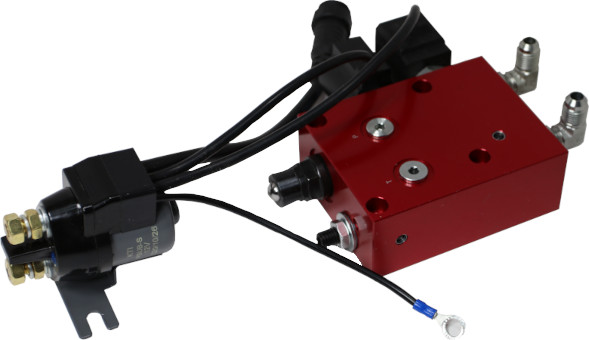

Modify your power unit’s configuration using interchangeable manifolds.
Configurations available:
